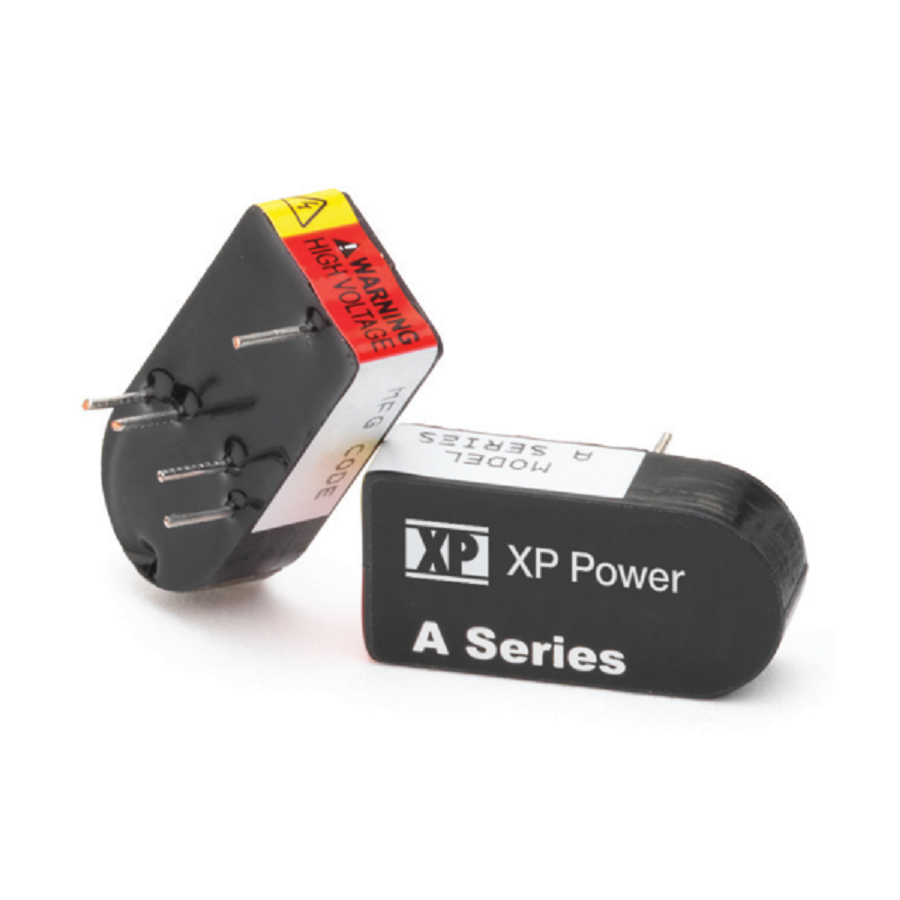

A02N-5
Manufacturer:
XP Power
Mfr.Part #:
A02N-5
Datasheet:
Description:
DC to DC Converters DIP-5 Through Hole Min Input Voltage:700 mV Max Input Voltage:5 V
| Parameter | Value |
|---|---|
| Length | 23.368 mm |
| Width | 11.43 mm |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -25 °C |
| Height | 6.35 mm |
| Packaging | Box |
| Depth | 23.37 mm |
| RoHS | Non-Compliant |
| REACH SVHC | Unknown |
| Features | SCP |
| Min Input Voltage | 700 mV |
| Max Power Dissipation | 1 W |
| Max Output Current | 5 mA |
| Max Input Voltage | 5 V |
| Number of Outputs | 1 |
| Isolation Voltage | 500 V |
| Output Power | 1 W |
| Current - Output 1 | 5 mA |
| Voltage - Output 1 | -200 V |
| Max Input Voltage (DC) | 5 V |
| Max Output Power | 1 W |
| Min Input Voltage (DC) | 700 mV |
| Output Current-Channel 1 | 5 mA |
| Output Voltage-Channel 1 | 200 V |
Stock: 5
Distributors
pcbx
pcbxUnit Price$59.63550
Ext.Price$59.63550
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $59.63550 | $59.63550 |
| 10 | $57.84832 | $578.48320 |
| 25 | $48.74339 | $1218.58475 |
| 50 | $47.96067 | $2398.03350 |
| 100 | $47.19046 | $4719.04600 |
